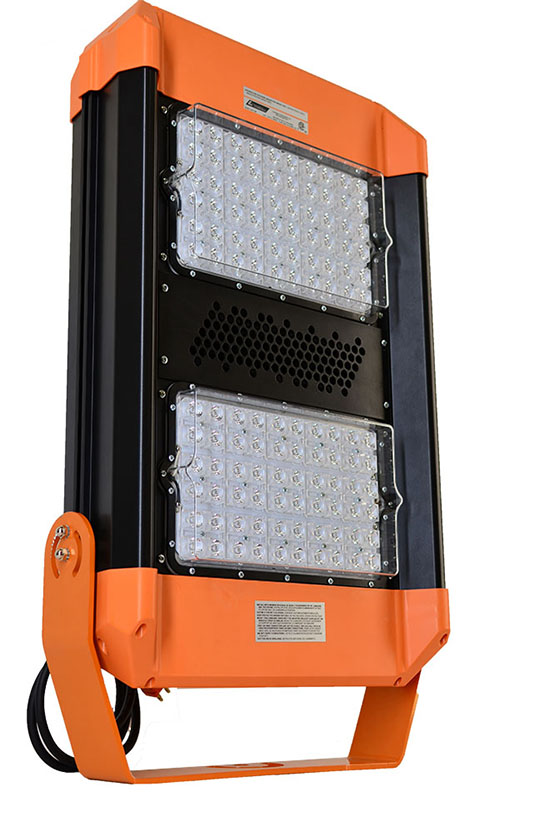

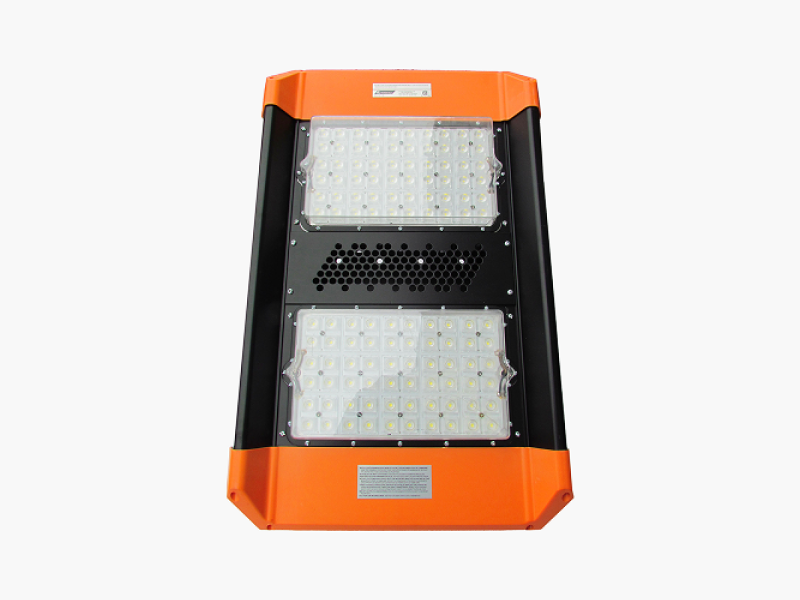

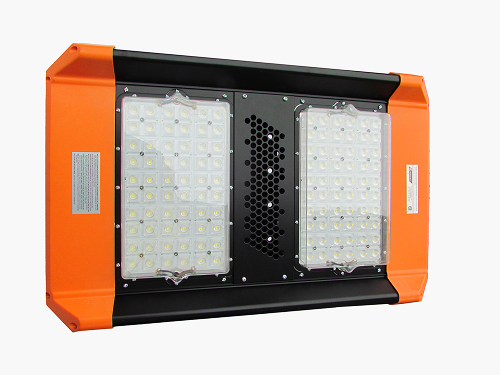

High Mast Light Helos Series

SLD-HM fixtures are designed for maximum performance and reliability required in the most challenging high-mast lighting applications with 77,000 delivered lumens and a wide variety of beam angles.

Use:
industrial
municipal

Application:
Sports Facility, Construction Site, Interstate Highway, Roadway,Mining, Port & Rail Yard, Industrial

Description

The SLD-HM fixtures are designed for maxim8um performance and reliability required in the most challenging high-mast lighting applications. Utilizing only top-of-the-line components for the LED engine, these fixtures will deliver a quality of light that is exceptional in terms of consistency and intensity. With 77,000 delivered lumens and a wide variety of beam angles, the fixture is capable of meeting all of your lighting needs. Most importantly, with its dual heat sink design, these fixtures are over engineered to provide the greatest reliability in even the most extreme environments. Lumingen’s fixtures are also backed by our world class technical support helping you rest easy with your lighting needs.

SPEC SHEET

Variations SKU NUMBERDelivered Lumens (lm)Wattage (W)Efficacy (lm/W)Input VoltageSize (cm)Weight (KG)
SLD-HM-040061,320413149100-277V/ 347V/ 480V70X45X1620.0
SLD-HM-056077,150563137100-277V/ 347V/ 480V70X45X1620.0

SLD-HM-XXXX Specifications:

  • Listing: CSA US-Canada Certified for Wet Locations. DLC QPL listed. BC Hydro e.Catalog listed.
  • LED: Industry-leading Cree ceramic LEDs. Developed for superior lumen and thermal reliability, high light intensity, and easy optical control in a compact chip size.

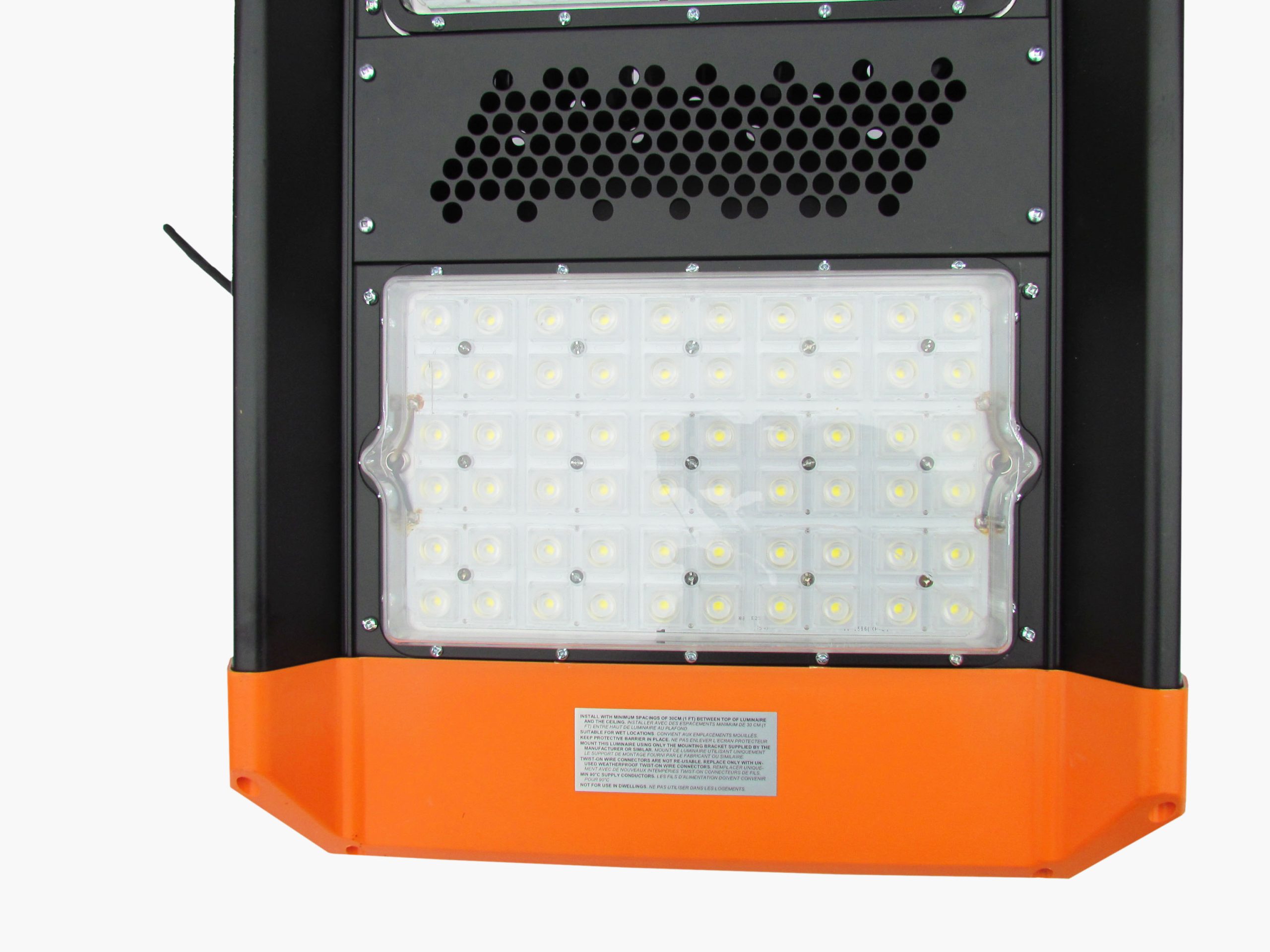

  • Optics: Clear impact-resistant polycarbonate (PC) lens. Surface Mounted optics for precise light control, high optical efficiency. 120° standard FWHM (no additional optics)
  • Optical Variations: 10°, 25°, 66°, 90°, 131°, Type II, Type III
  • Available CRI: 70, 80, 90
  • Colour Temperature (CCT): 2700-6500 K
  • Operating Temperature: -40˚C to +55C
  • Standard Warranty: 5 years
  • Reported (and Projected) TM-21-11 LED Lumen Maintenance:
    • L90 (90% light output) > 145,000 hours (Projected 150,000 hours)
    • L70 (70% light output) > 145,000 hours (Projected 457,000 hours)
  • Input Voltage: 120-277/347/480 VAC (50/60 Hz)

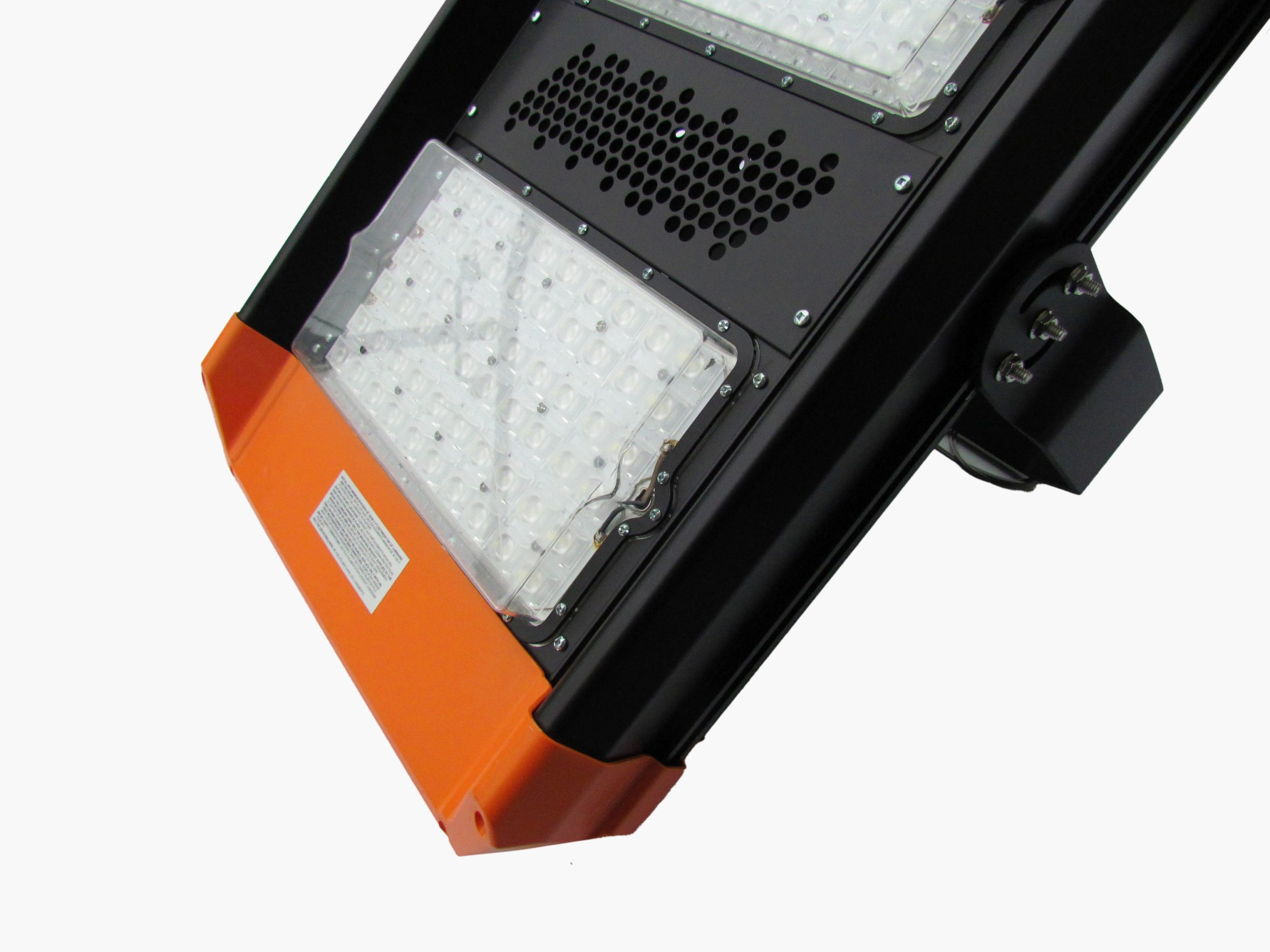

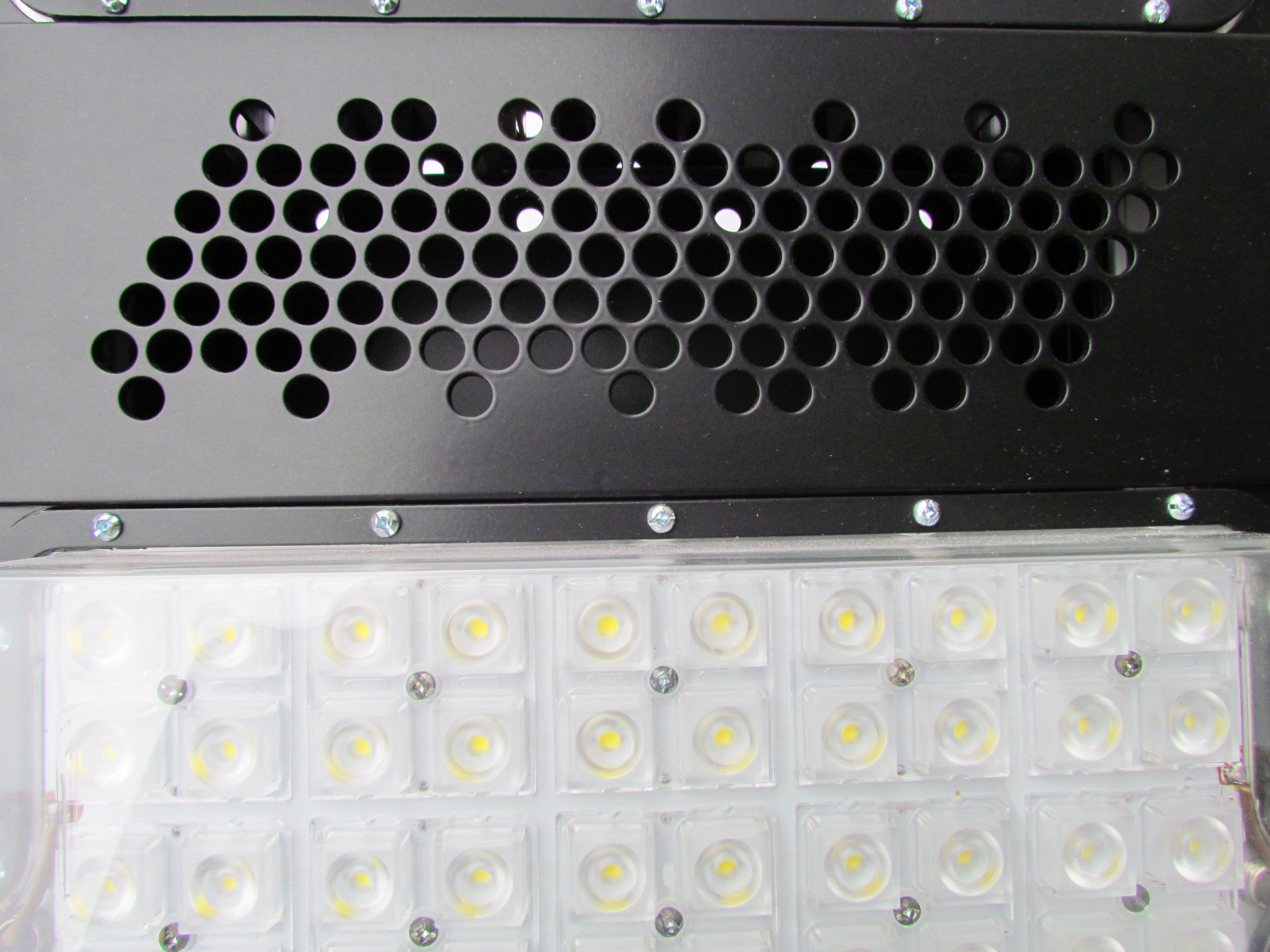

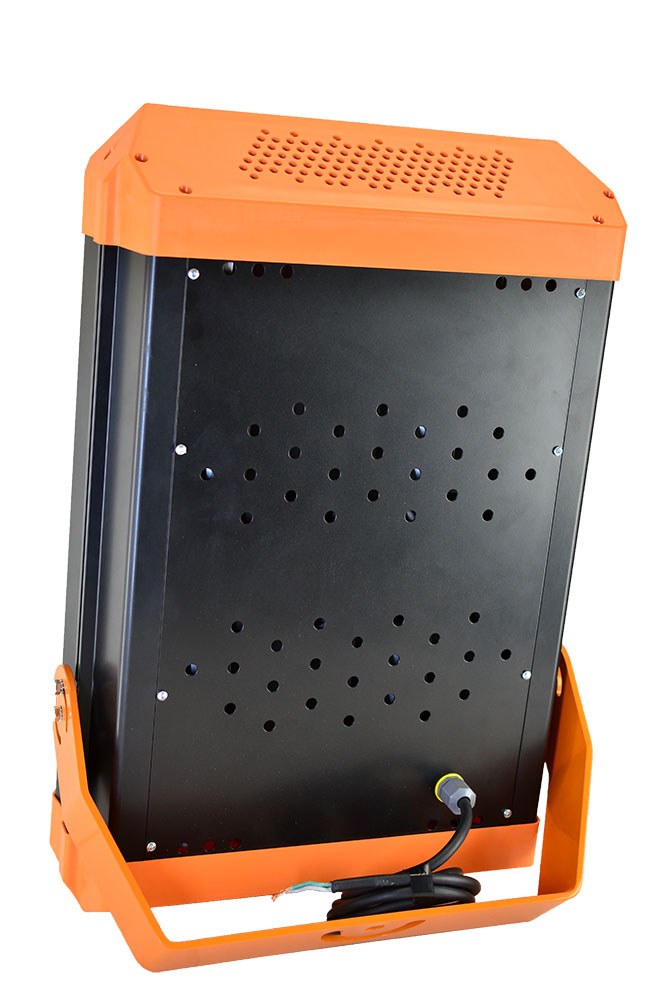

  • Construction: High-quality aluminum extrusion parts with powder coating finish for corrosion and harsh environment protection. ABS UL94-V0 end cap housing parts. The IP67 LED engine utilizes a robust extruded aluminum heatsink with PC lens cover.
  • Standard Dimensions: 70 cm x45 cm x16 cm [28”x18”x7” ]
  • Standard Weight: 20 kg [43 lb.]

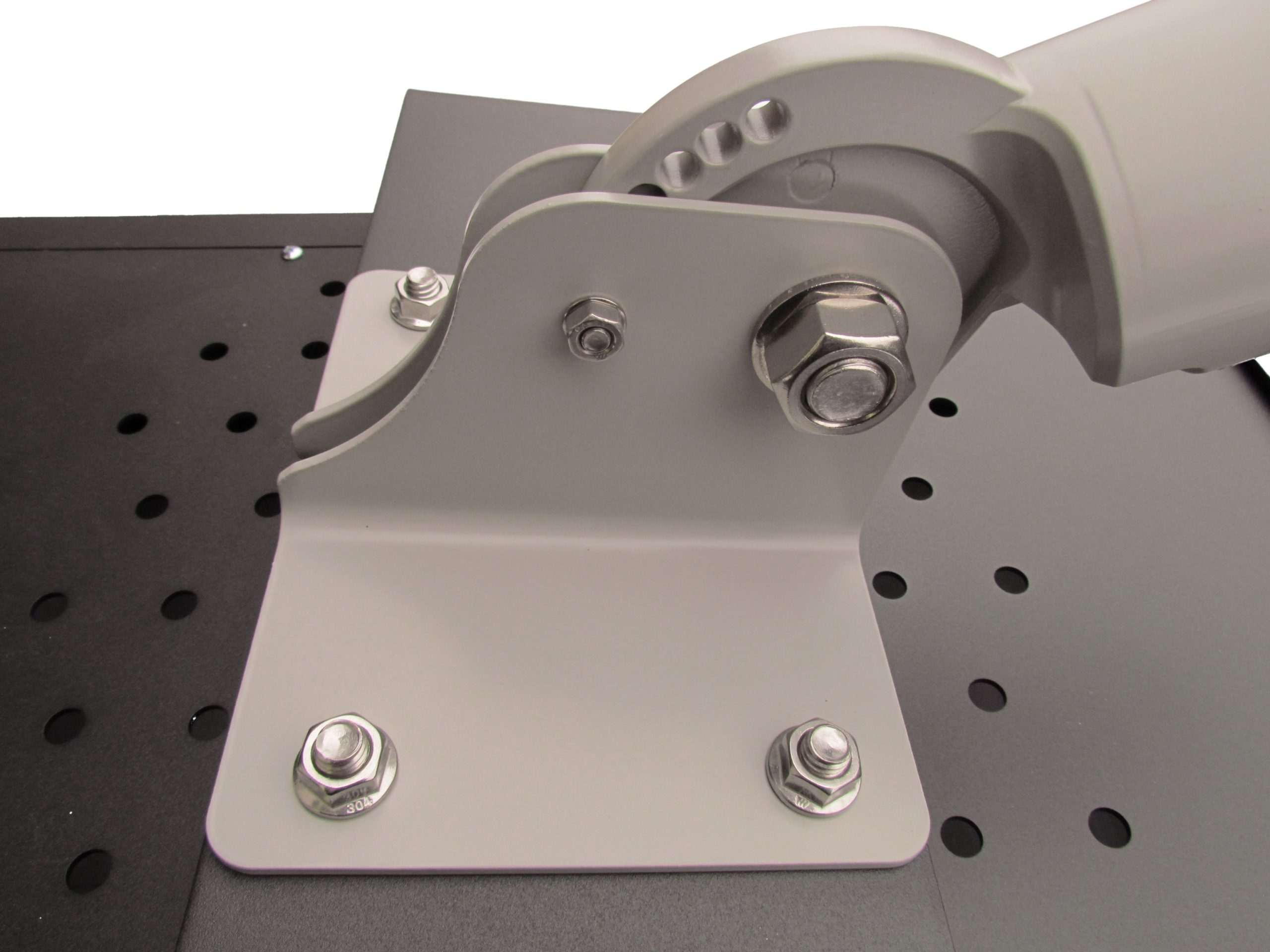

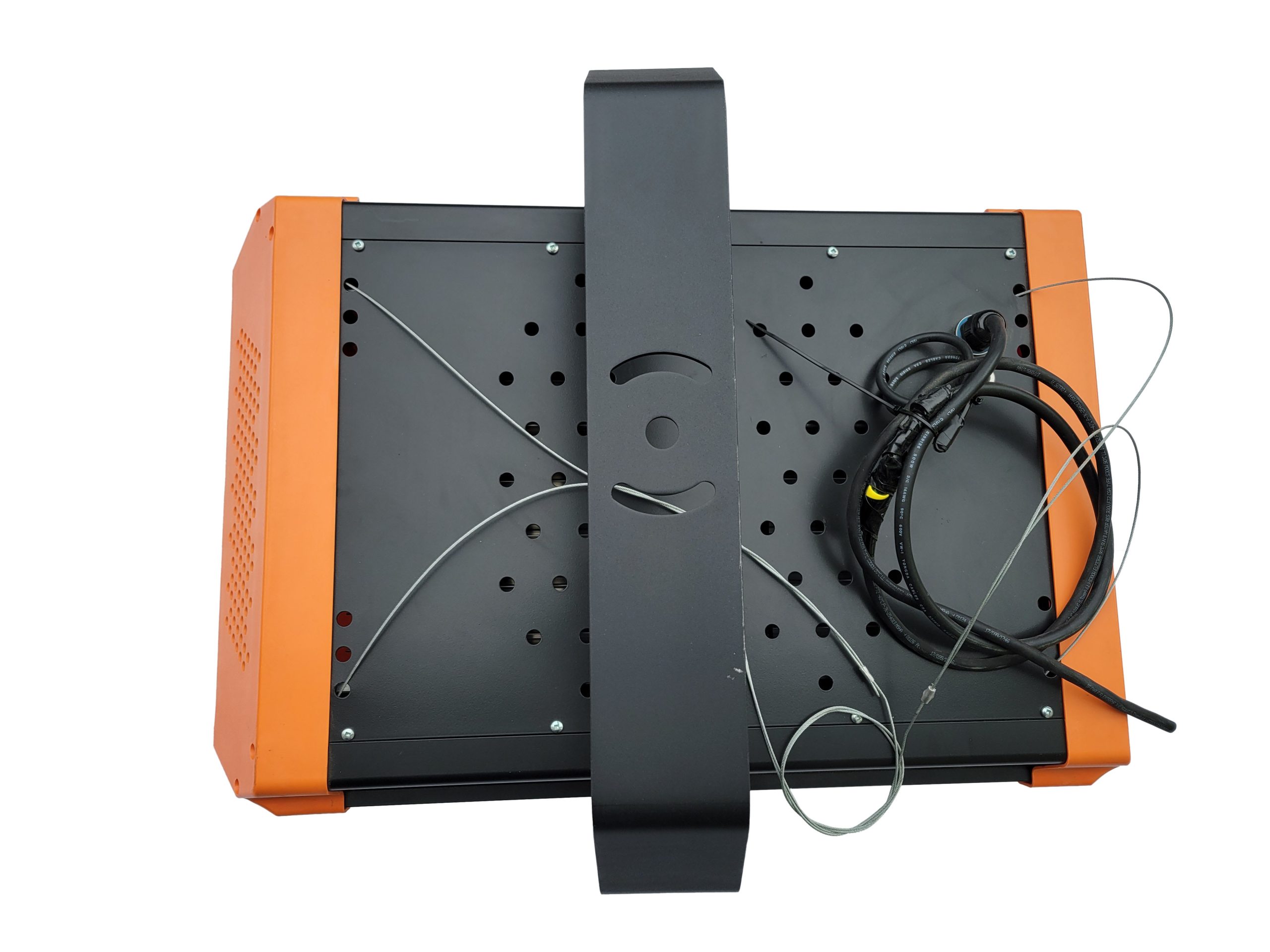

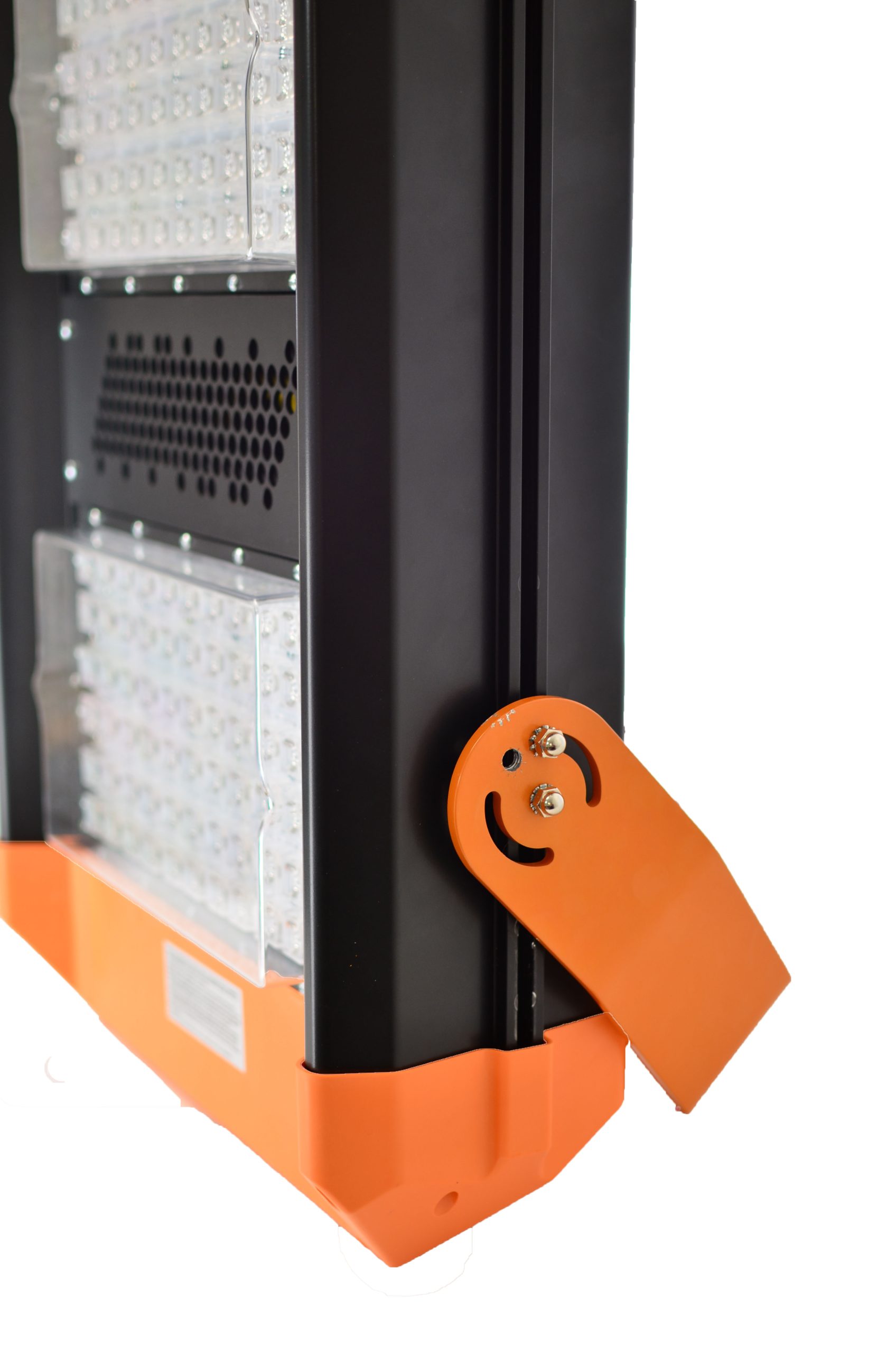

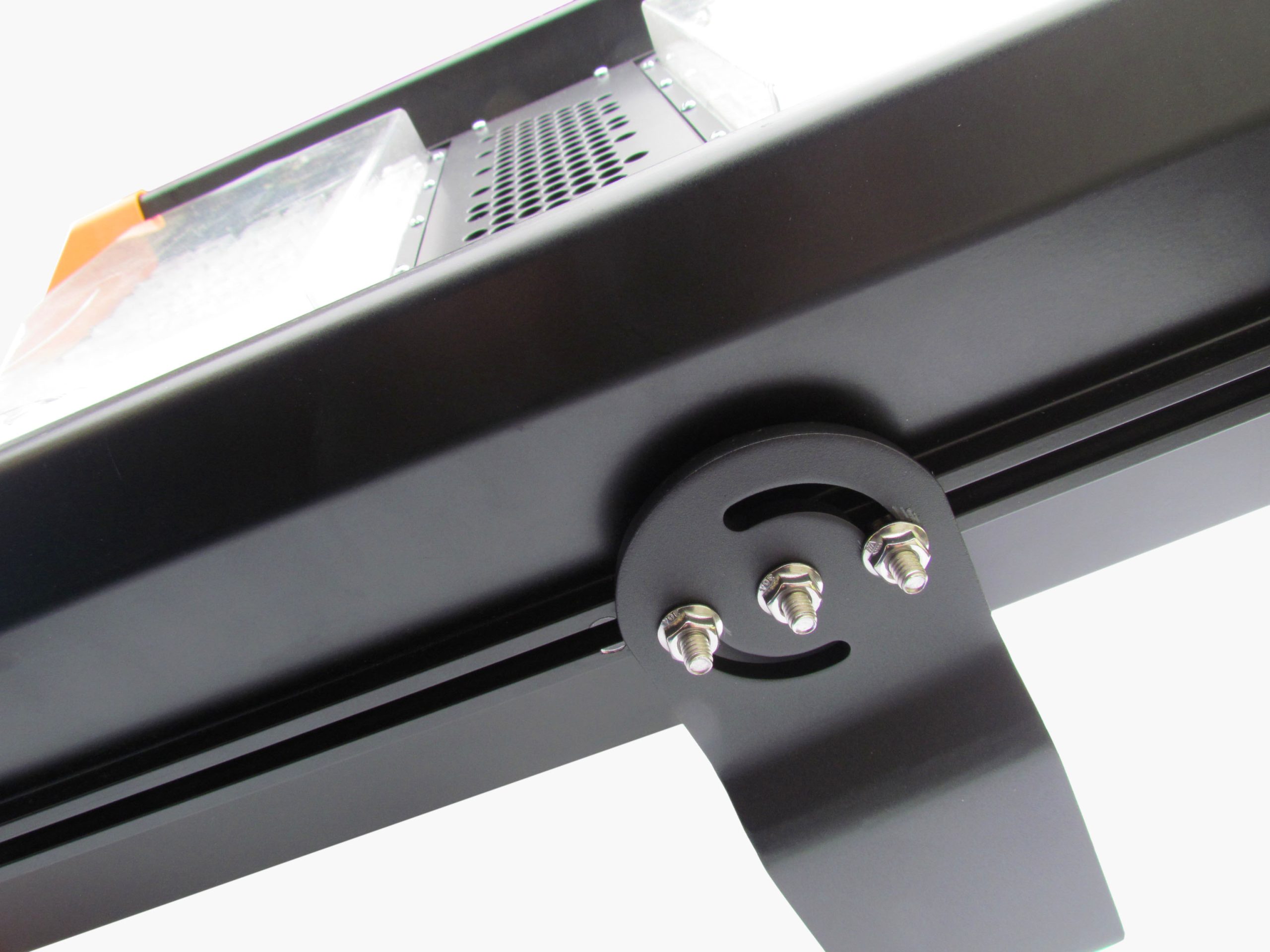

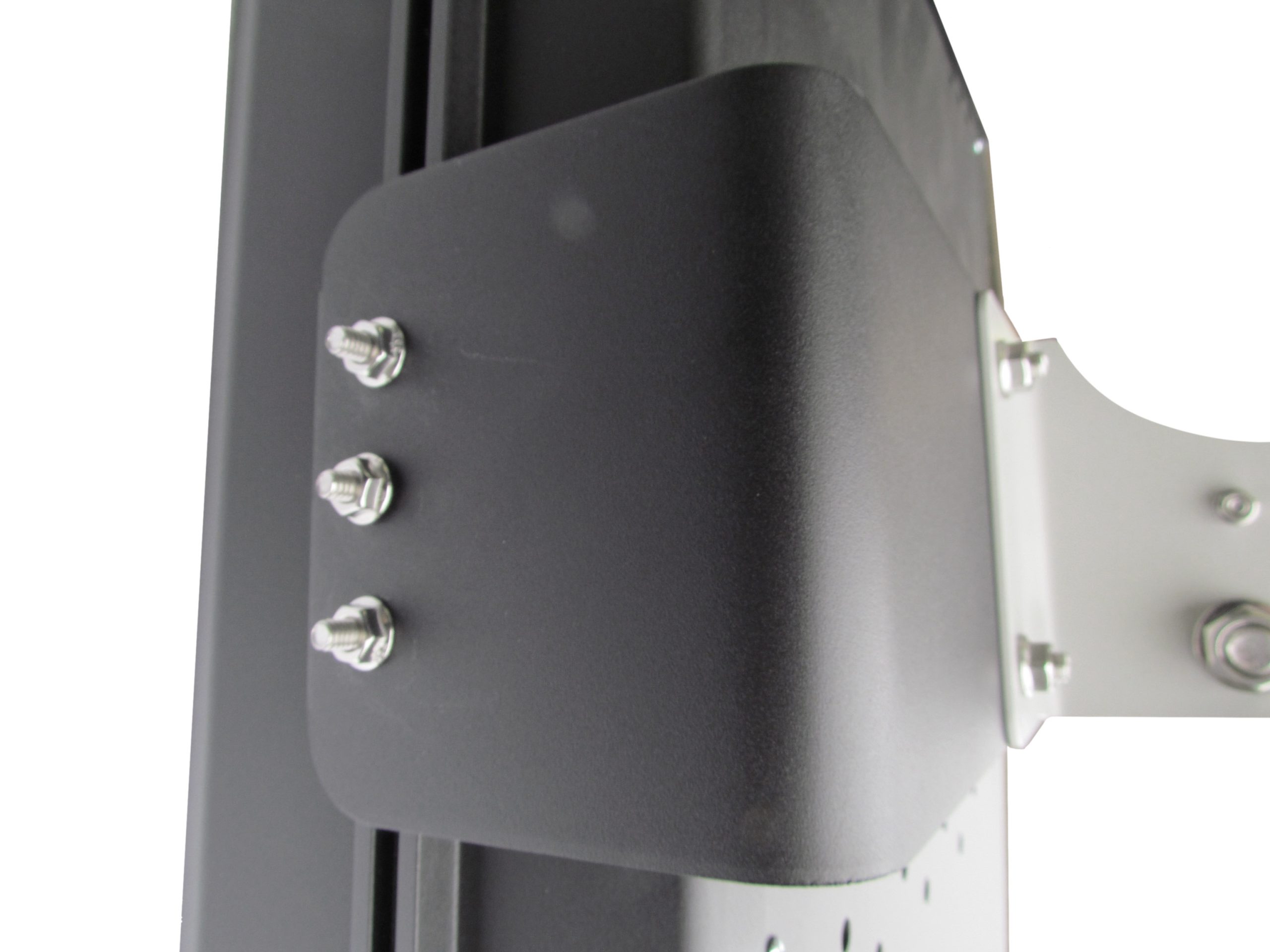

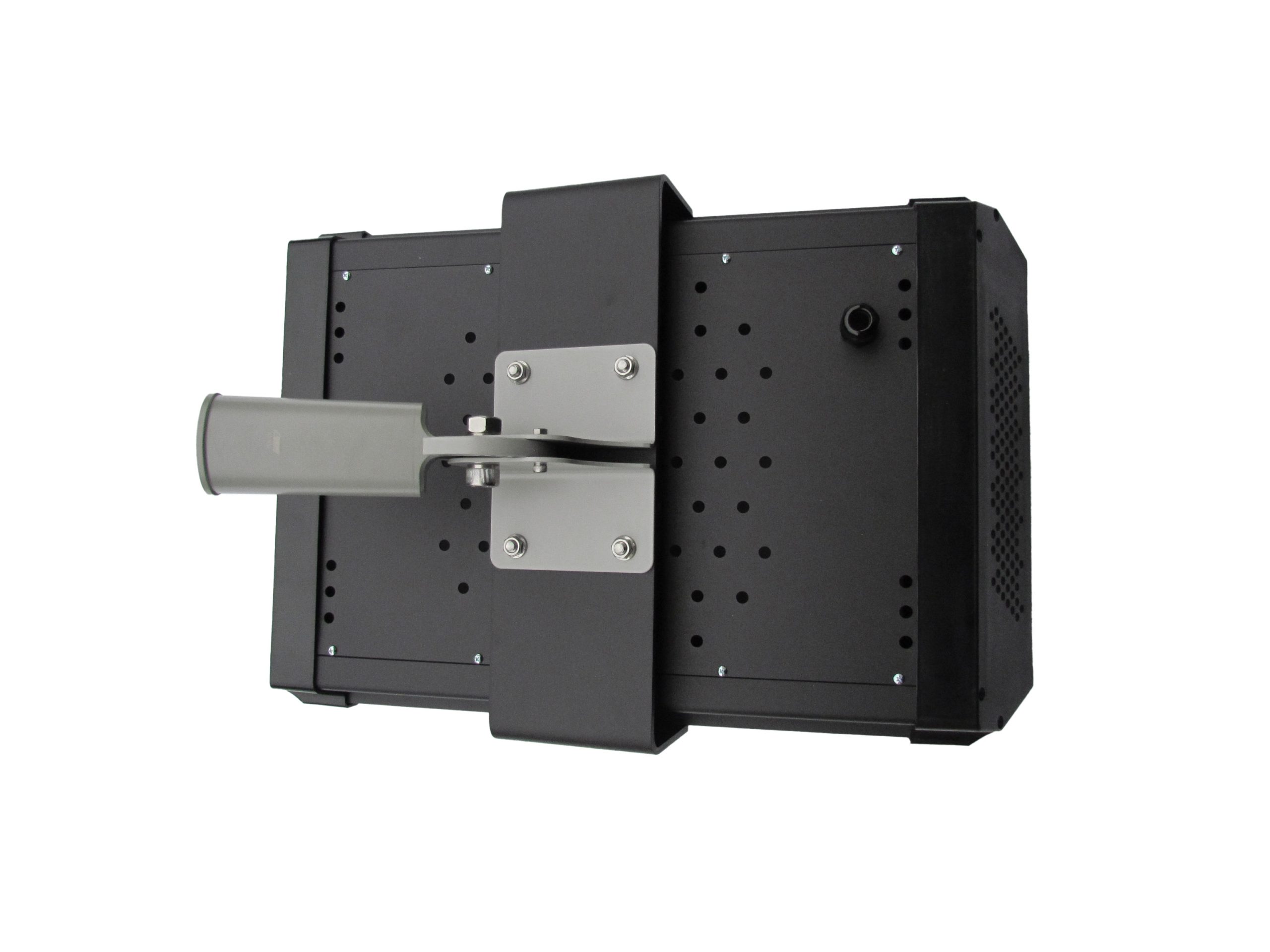

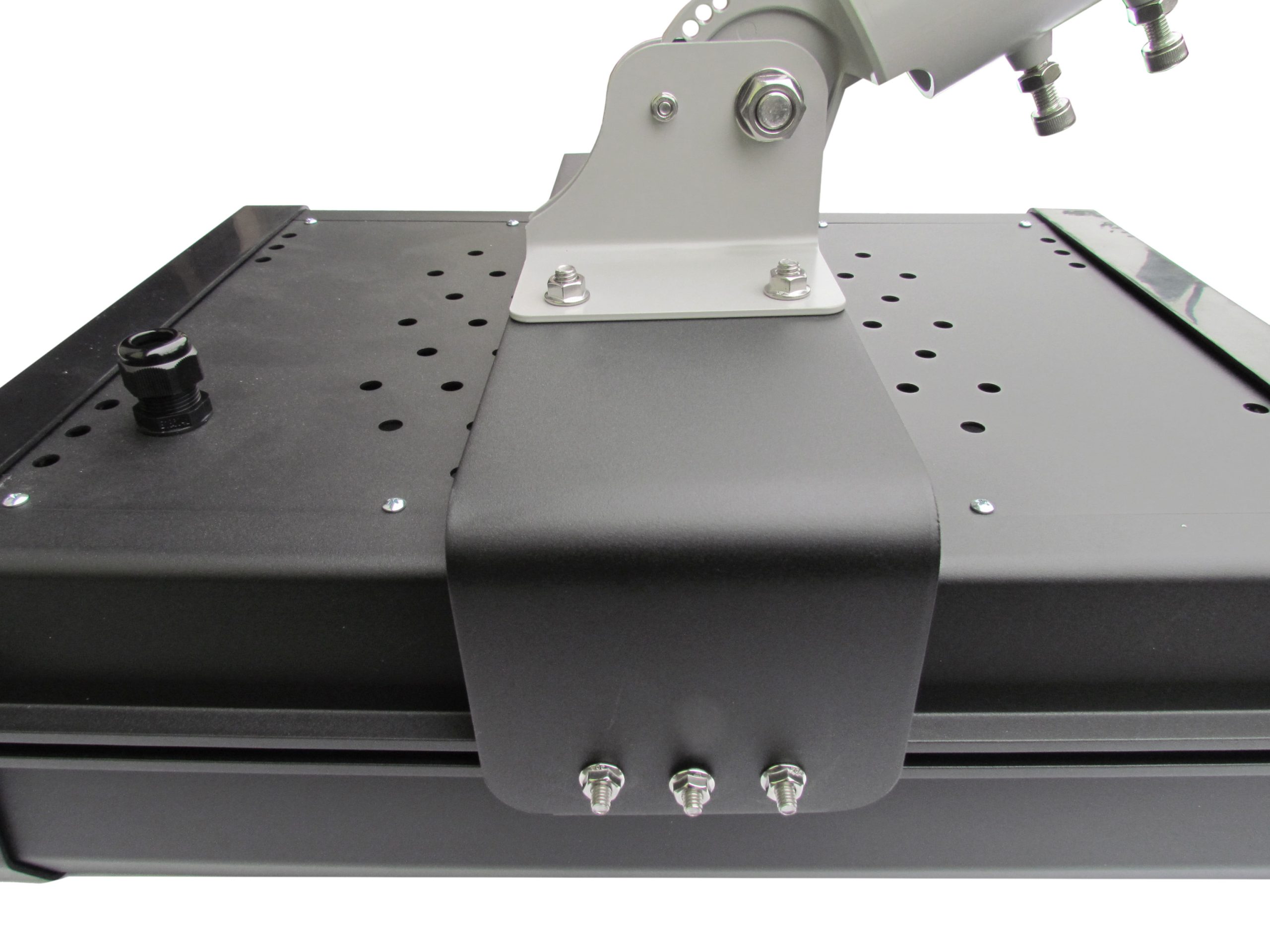

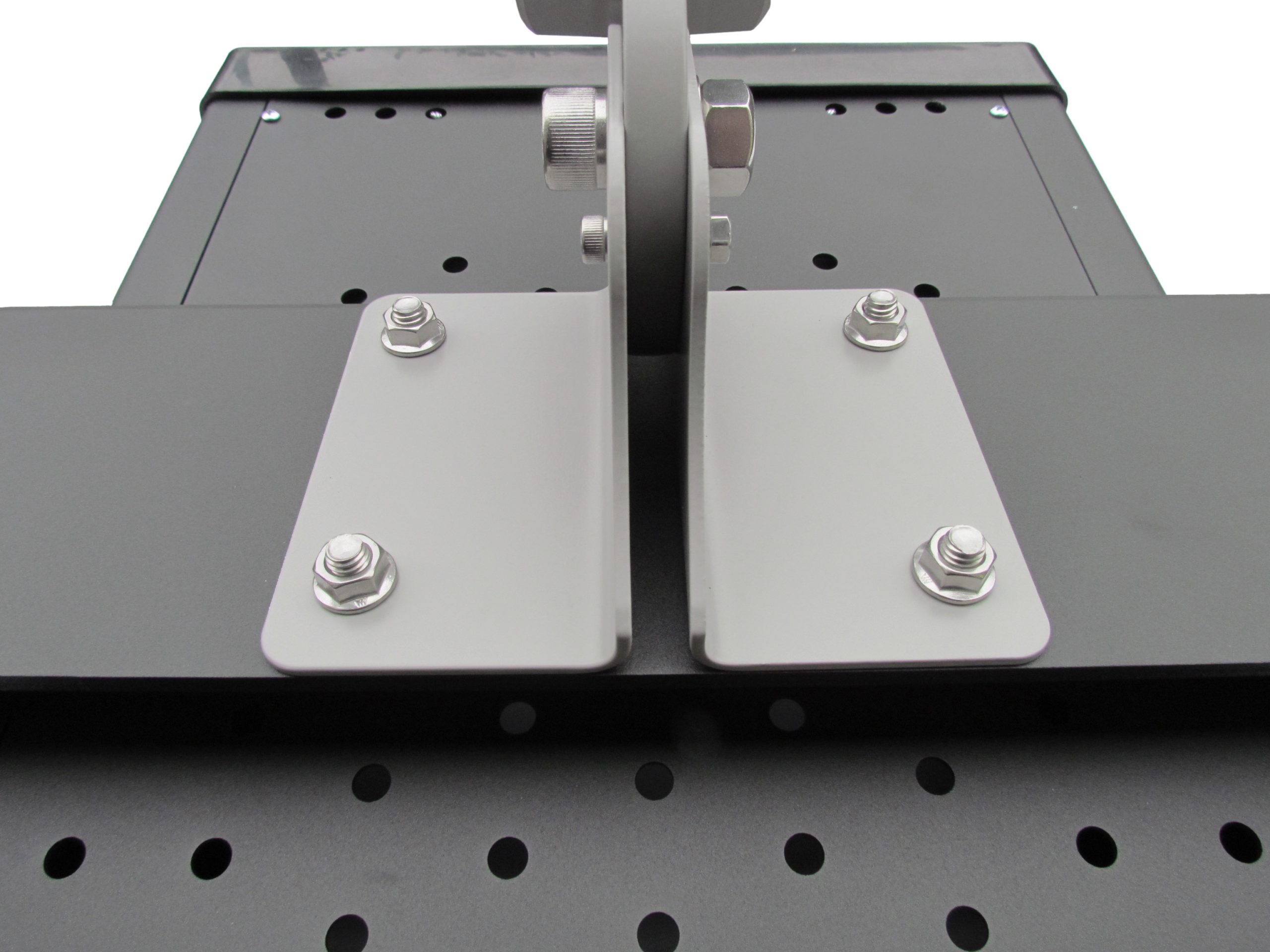

  • Installation: Surface/Pendant mounting utilizing a standard yoke-style bracket. Pole mounting for 60 mm (2.375 in) slip-fit poles. Suspension installation using a supplied galvanized aircraft cable kit.
  • Available Features: 0/1-10V dimming, integrated photocell/receptacle options, additional surge protection.

CONFIGURATION

  • 0/1-10V Dimming
  • Photocell

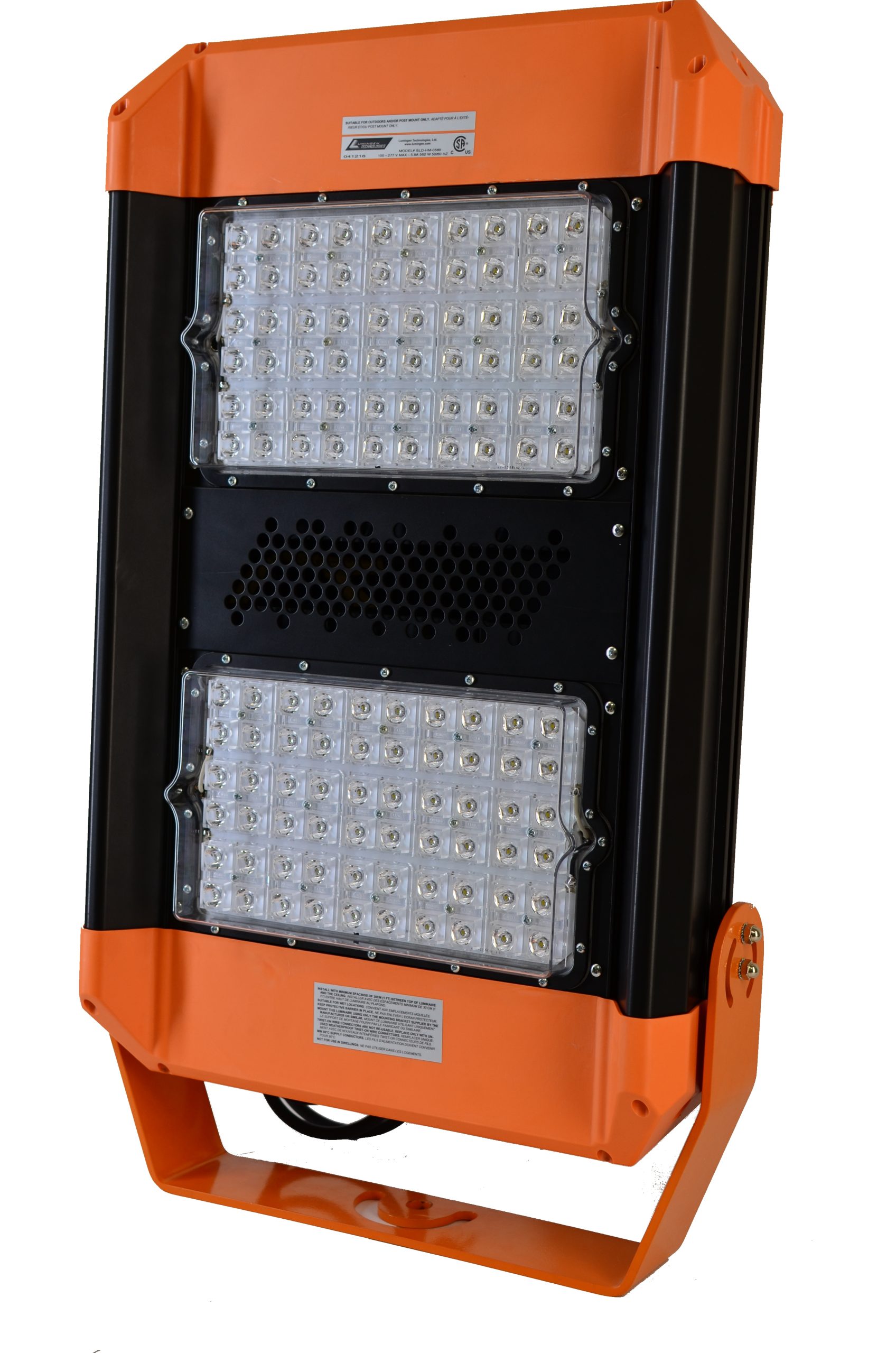

  • Yoke-mount
  • Internal or External Surge Protection
  • Pendant Suspension
  • Pole-mount
  • Cable Suspension
